Single Row Shrouded Header 2.00mm Pitch PH Side Entry Type Connector Male connecotr

Brand Name : HRT

Model Number : A2001WR-NP

Certification : ISO9001/ ISO14001/UL/RoHS/REACH

Place of Origin : Dongguan, China(mainland)

MOQ : 5000 pcs

Price : Negotiated

Payment Terms : TT, Western Union, PayPal, L/C

Supply Ability : 1.5 million pcs per month

Delivery Time : 5 to 8 working days after payment checked

Packaging Details : Bag with outside carton

Category : Wafer connector

Application : Signal, wire-to-board

Material : PA66

Wire range : AWG30# to 26#

Flammability : UL94V-0

Gender : Male

Contact Now

2.0mm wafer connector 90 degree with brass or tin-plated pin for PCB circuits

1, The specification of the product including basic size information, electrical and mechanical properties.

Basic size information
Pin materials		brass or tin-plated
Suitable housing		A2001series
Pitch		2.00mm
Color		white
Row		single
Lock to mating part		without
Circuits		2 to 18 pins(position)
Wire insulation diameter		1.30mm Max.
Terminal materials		phosphor bronze material, tin-plated or gold-flash finish

Electrical properties
Current Rating		2.0 A AC, DC
Voltage Rating		100 V AC, DC
Contact Resistance		10 mΩ Max
Insulation Resistance		1000 mΩ min
Withstanding Voltage		800V AC/minute

Mechanical properties
Temperature range		-25℃ to 85 ℃
Other information please kindly check the following picture.

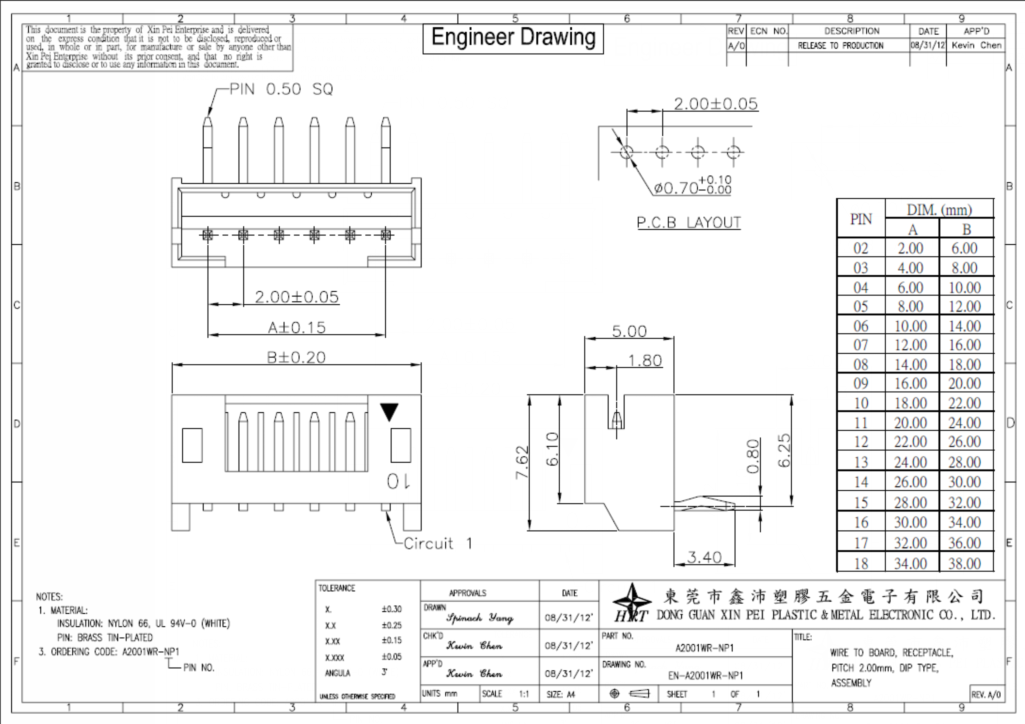

2, Related drawing and report

Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

Single Row Shrouded Header 2.00mm Pitch PH Side Entry Type Connector Male connecotr

Electrical Performance

Test Description		Procedure	Requirement
4-1	Contact Resistance	Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)	10mΩ (Max.)
4-2	Insulation Resistance	Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)	1000MΩ (Min.)
4-3	Dielectric Withstanding Voltage	Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)	No Breakdown.
4-4	Contact Resistance on Crimped Portion	Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.	5mΩ (Max.)

3, FAQ

Q:Do you allow multiple design per setup?
A:Yes.We accept OEM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed world, delivery by

Fedex/UPS/DHL etc is normally 2-3 days(excluding weekends).

Q: How is the goods packaged?
A: Usually in tube, pipe, plate, bags with outside carton
